Your Advantages

  • 220-240 Volt Dual Vacuum System
  • 635kg (1,400 Lbs.) Load Capacity
  • Eight 11" (280 mm) Diameter Cups
The CRL Wood's Powr-Grip® High-Flow Quadra-Tilt Lifters feature an innovative Four-Bar Tilt Mechanism that significantly reduces the effort of tilting heavy loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the Lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees.

Automatic self-testing ensures lifter is ready for use, every lift. Color display provides critically relevant information at a glance. Anticipates threats and alerts operator beforehand with clearly visible and audible warnings. Smart power management enables lifter to work longer on a single charge. Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low. Multiple alarm levels plainly identify the severity of hazards.

These units also feature 360 degree manual rotation, removable pads and extension arms that accommodate a variety of load sizes and shapes.

Standard Pad Spread:
Minimum Width - 12-1/2"
Maximum Width - 58-3/4"
Minimum Length - 46-3/4"
Maximum Length - 104-1/2"
Number/Size of Vacuum Pads:
8 each 11" diameter, lipped pads
Maximum Load Capacity:
1400 lbs (635 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces).
Weight of Lifter:
200 lbs (91 kg)
Standard Operating Power:
12 volts DC, 4.5 amps
Load Movement:
Manual rotation, 360 degree edgewise, with automatic locking at each 1/4 revolution
Assisted manual tilt, 90º between upright and flat
Standard Features:
Dual vacuum system
On-board battery and charger
Battery energy gauge
Low vacuum warning buzzer
Power loss warning buzzer
Green lift light
Vacuum gauges
Vacuum line filters
Vacuum reserve tanks
Spring-mounted vacuum pads
(Re)movable pad mounts
Pad extension arms
Tilt locks
Blow-off for quick release
Available Options:
Remote control system
Extensions for movable pad mounts
Pad frame T-arm assemblies
Alternative vacuum pads (Specifications not as listed above. Please contact us for more information):
9" diameter pad (VPFS9)
10" diameter, concave pad (G0750)
10" diameter with replaceable sealing ring (VPFS10T)

Alternative pad compounds, including ones for low-marking, temperature resistant and coated surface applications.
VersionMetal
ApplicationFlat Surfaces
Capacity635 kg
Cups8
ManufacturerWood´s Powr Grip

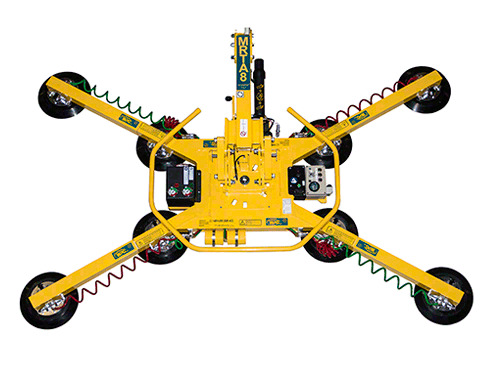

CRL Wood's Powr-Grip® High-Flow DC Quadra - Tilt Rotator/Lifter - European Model

Cat. No.
EUMRTA811LDC3
Shipping Information:
  • No UPS - Common Carrier Only
