Your Advantages
- For 3/16" to 1/4" (5 to 6 mm) Glass
- Opens a Full 90 Degrees
- One Per Package
CRL Overlay Hinge allows glass to overlap opening of cabinet. Mounts to EH122 Mounting Plate.

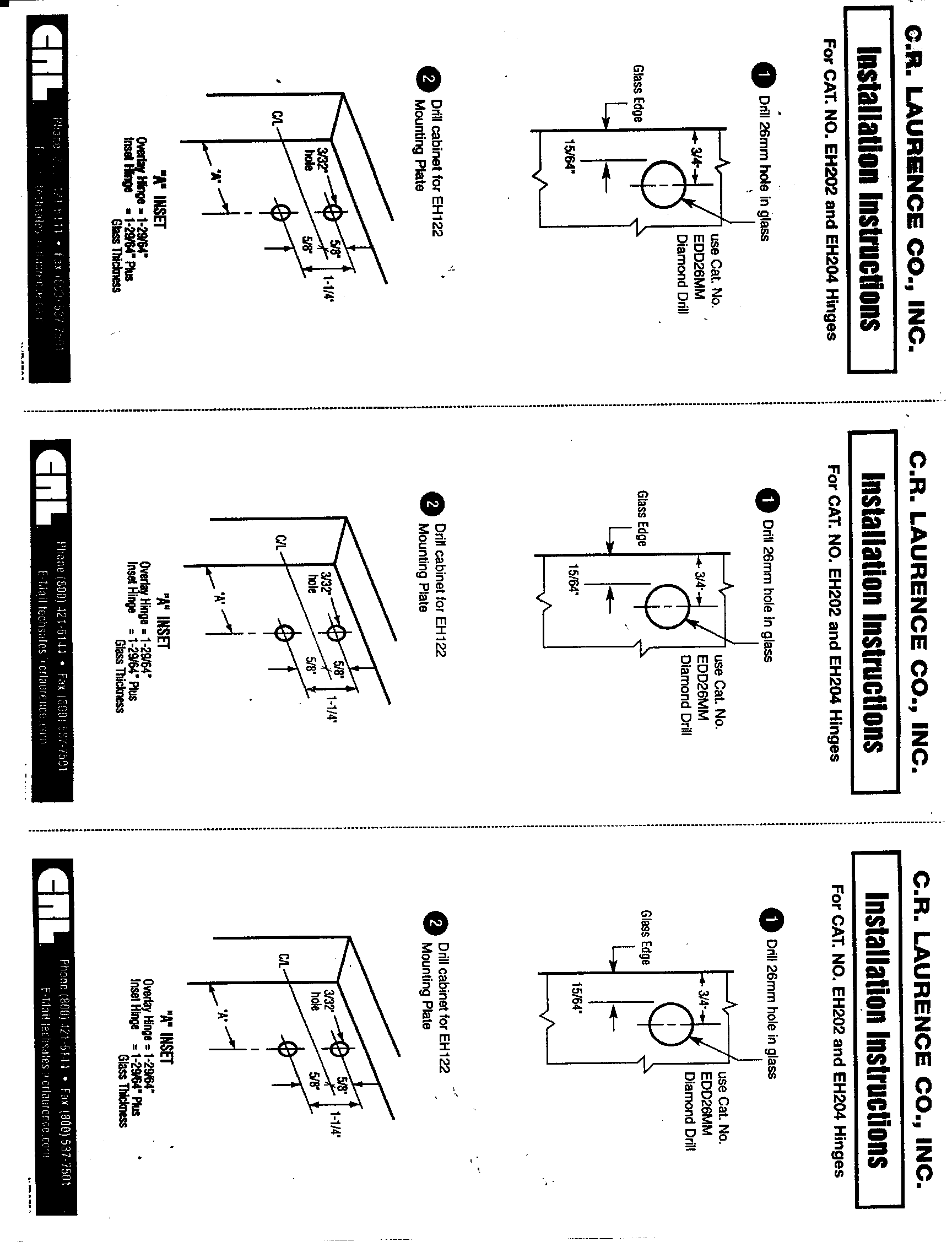

Our European Style Hinges for surface or flush mounting of glass cabinet doors open a full 90 degrees to allow full frontal access to the interior. Accommodating 3/16" to 1/4" (5 to 6 mm) thick glass, they require a 26 mm hole for installation. Common Mounting Plate and Hinge Cover Plate fit either Overlay or Inset Type Hinges. Two Glass Cover Plate finishes fit either Hinge. The entire system is designed for easy installation. Minor adjustments for a precise fit can be made without moving the entire Hinge.
Our European Style Hinges for surface or flush mounting of glass cabinet doors open a full 90 degrees to allow full frontal access to the interior. Accommodating 3/16" to 1/4" (5 to 6 mm) thick glass, they require a 26 mm hole for installation. Common Mounting Plate and Hinge Cover Plate fit either Overlay or Inset Type Hinges. Two Glass Cover Plate finishes fit either Hinge. The entire system is designed for easy installation. Minor adjustments for a precise fit can be made without moving the entire Hinge.
Shipping Information:
- Can Ship UPS
