Your Advantages

  • For 3/4" (19 mm) Monolithic Tempered Glass
  • Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
  • Permits Easy Glass Panel Replacement by Means of Bolts
  • Railglass® Factory Controlled Bonding of Glass is Also Available
  • 6063 Alloy, T52 Temper in Three Finishes

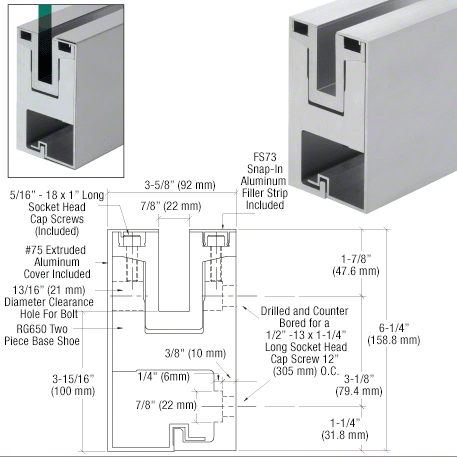

CRL-Blumcraft®'s RG650 Series Two Piece Fascia Mount Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.

GLASS SPECIFICATIONS: 3/4" (19 mm) Thick Glass using Wet Glaze System. Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.

SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Length144" (3.65 m)
NOTE: Use only SHCS1213X114 Socket Head Screw with this channel.

CRL-Blumcraft® Mill Clear Anodized RG650 Series Two Piece Fascia Mount Base Shoe

Cat. No.
Shipping Information:
  • No UPS - Common Carrier Only
