Your Advantages

Supports All Mounting Methods With One Compact Installation/Removal Tool
Eliminates the Use of Messy Cement
U.S. Patents 8,122,654 and 8,201,366. Commonwealth of Australia Patents 2008207524 and 2012202256
50% Faster to Install Over Traditional Wet Set Methods
Use Monolithic Tempered Glass
Reinforced Polymer for Interior and Exterior Use With CRL's 8B, B5S, B5A, B5T, 8B58, B6N, B6S, 8B34, and B7S Glass Railing Base Shoe
Precision Measured Control Gives You High Quality Installs Every Time

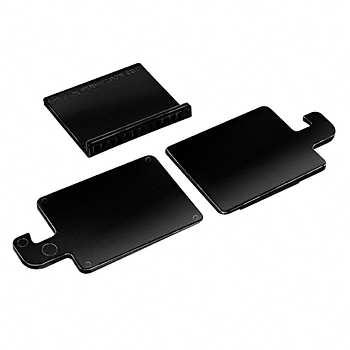

CRL's TAPER-LOC® 'X' Taper Set for 1/2" to 3/4" (12 to 19 mm) Monolithic Tempered glass is made up of two Tapers and one L-Setting Block. Tapers are made of high strength reinforced engineering grade polymer, and expand in thickness when compressed together with the Cat. No. TLK12 Installation/Removal Tool, mechanically locking the
glass panel into the base shoe.

The TAPER-LOC® L-Setting Block spaces the glass away from the base shoe’s vertical wall on one side and at the bottom edge, and is attached to either the inside of the Base Shoe's "drop-side" wall or to the glass panel prior to installing into the base shoe with an adhesive tape strip that is pre-installed. It also serves to insulate the glass panels from damage during insertion into the base shoe, and at the same time centers the glass in the pocket.
