Your Advantages

  • For Use With DORMA® BTS80 and BTS75 Series Floor Mounted Door Closers
  • Flat Tapered Type
  • Six Available Heights from 1/8" to 1-5/16" (3.2 to 33 mm)
CRL Flat Tapered and "MAB" Type Spindles are available in various heights to accommodate different threshold and finished floor heights, and can be used with all CRL Models, Jackson® 900, and Dorma® BTS80 Floor Mounted Door Closers. The CRL Flat Tapered Spindle will allow the use of all center-hung and offset bottom arms intended for use with this type of spindle, as well as CRL Patch Fitting Inserts. The "MAB" Style Spindle is commonly used throughout Europe and South America.
No downloads and documents available.

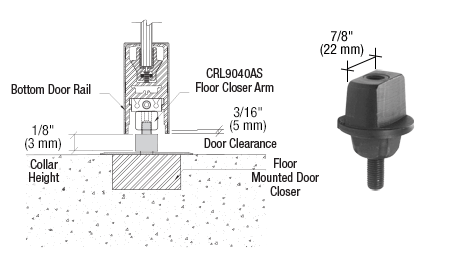

To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.

CRL Floor Mounted Closer 1/8" Collar Height Tapered Type Spindle

Cat. No.
CRL9040S3
Shipping Information:
  • Can Ship UPS

Alternative products
